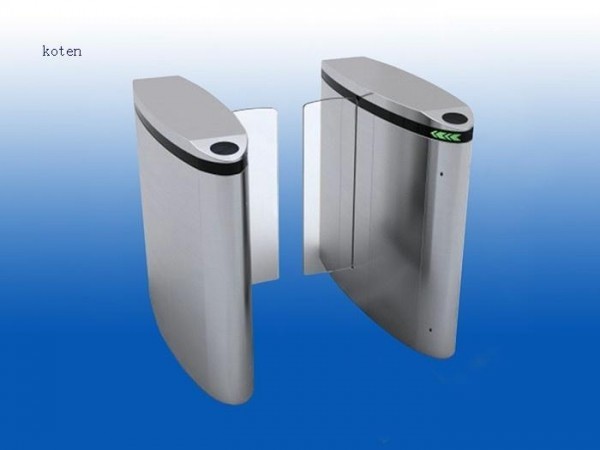

The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve access intelligentized control and management.
Function and characteristics:
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Being able to program running status by the small keyboard in the main board
3. Preventing pedestrians from being nipped and from hurt
4. Sound alarm function including the illegal in and the tail
5. Doors are automatically locked till opening signal is received.
6. Doors synchronization (adjustable) 7. Automatically reset function: It will automatically lock if the pedestrian has not pass through the channel in the pre-set time after the opening. The passing time is adjustable from 1-60sec by client.
8. Automatically open the gate when power off and automatically close when power on
9. Several card readers are attachable, relay out signal can be received 10. One direction or bi-direction are optional
11. It can be directly controlled and managed by remote control.
12. Many working models which can be set by press the small buttons on the Control Board:
a. Bi-directional card reading for entry and exit
b. Card reading for one direction and another direction is forbade
c. Card reading for one direction and another direction for free passing
d. Gate open and close by IR sensor detection one way or two way
13. Silent running with no noise
14. Anti-nip doubly by mechanical device and IR sensors
15. Gate close when pedestrian has passed the first IR sensor behind flap door
16. Alarm sounds when burst into the lane without card reading or invalid card reading
17. Can be set with/without memory of valid signal input, e.g. with memory function, card reading 3times, 3pedestrians can pass.
18. LED indicator arrow scrolling display
Peripherals options:
1. Electronic counter
2. Access control system
3. E-ticketing system
4. Time attendance system
Standard technical parameters
Framework material: SUS304 stainless steel(standard)
Framework size: 1400*300*1000(mm)
Lane width: 550-600mm
Net Weight: 80Kg/unit
Power supply: AC220/110V50/60Hz
